Start with what you need to do.

Follow a complete signal path, then open the product guide when you need individual settings. Each workflow focuses on a practical setup or check.

Check local devices

Check a USB camera and audio path locally.

Select a Windows camera and separate audio input and output devices, then verify the NV12 preview, PCM 48 kHz stereo audio, waveform, and AV timing on one screen.

Outcome
Confirm that Windows, the selected camera format, and the local audio path work before configuring recording or streaming software.
Uses
USB Camera AV Monitor

Signal path

  1. USB camera and audio input
  2. USB Camera AV Monitor
  3. Video preview, waveform, and audio output
View workflow

Test and diagnose

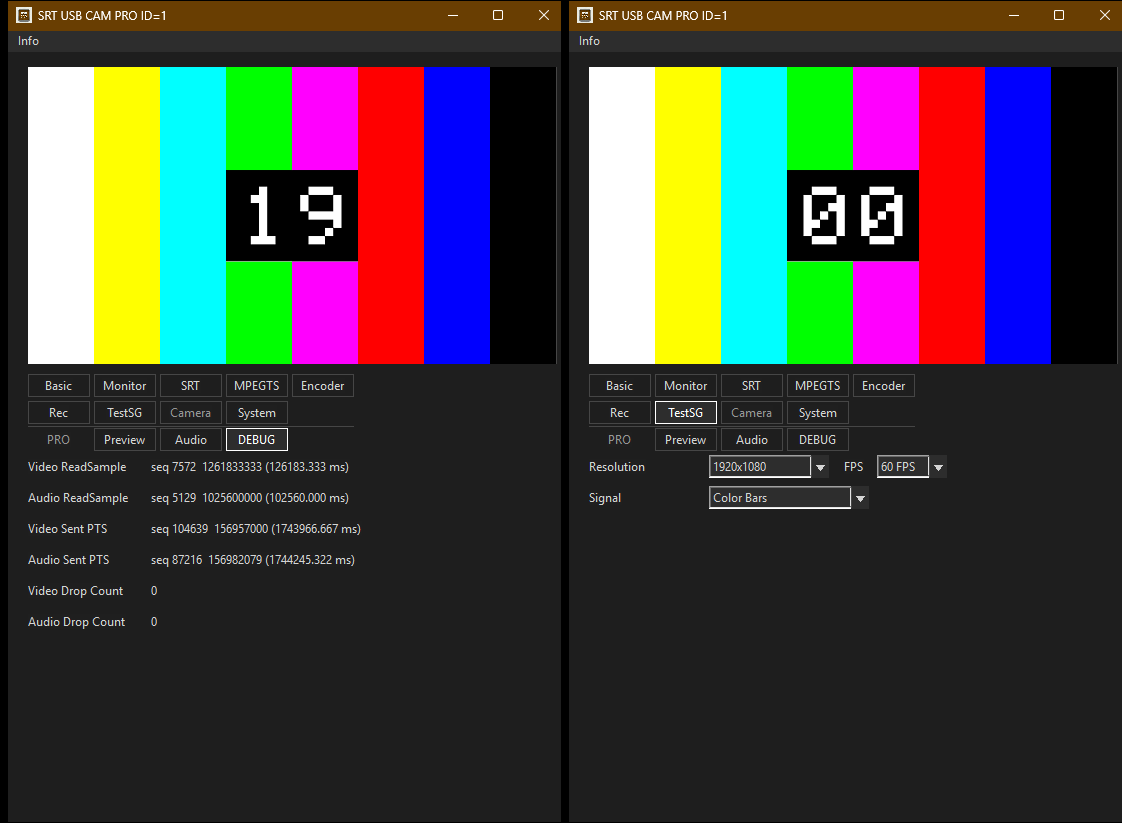

Test an SRT receiver before the camera arrives.

Send a known MPEG-TS test signal to confirm the receiver, network path, decoder, and matching SRT settings.

Outcome
Verify a receiving path without preparing a camera or audio source.
Uses
SRT USB CAM

Signal path

  1. SRT USB CAM
  2. SRT network path
  3. Receiver under test
View workflow

Send

Send a USB camera feed over SRT.

Capture a USB camera and optional audio, encode them as H.264 and AAC-LC in MPEG-TS, and send the stream to an SRT receiver.

Outcome
Deliver a live camera feed to a decoder, monitoring application, or other SRT endpoint.
Uses
SRT USB CAM

Signal path

  1. USB camera and audio
  2. SRT USB CAM
  3. SRT receiver
View workflow

Receive and monitor

Monitor an incoming SRT stream.

Receive MPEG-TS over SRT and check H.264 video, AAC audio, connection state, and live transport statistics on Windows.

Outcome
Confirm that a sender is delivering supported video and audio through the expected SRT path.
Uses
SRT Preview

Signal path

  1. SRT sender
  2. SRT network path
  3. SRT Preview
View workflow

Test and diagnose

Verify an SRT path with a generated test signal.

Generate a moving Color Bars or Noise pattern and send it as H.264 in MPEG-TS without preparing a camera feed.

Outcome
Repeat a receiver and network-path check with a dedicated, known video source.
Uses
SRT TEST Signal

Signal path

  1. SRT TEST Signal
  2. SRT network path
  3. Receiver under test
View workflow

Test and diagnose

Diagnose an SRT connection before testing media.

Test Caller, Listener, or Rendezvous connectivity and measure throughput, RTT, packet loss, encryption, and firewall state without decoding media.

Outcome
Separate transport and configuration problems from video or audio problems.
Uses
SRT Probe

Signal path

  1. SRT Probe endpoint
  2. UDP network path
  3. SRT peer
View workflow

Relay and redundancy

Relay one SRT input to two destinations.

Accept one SRT Listener input and forward its payload to as many as two independently enabled SRT Caller destinations.

Outcome
Create two outgoing copies while monitoring the input and each output separately.
Uses
SRT Redundancy Proxy

Signal path

  1. SRT sender
  2. SRT Redundancy Proxy
  3. Two SRT receivers
View workflow

Record

Record a received SRT stream to a TS file.

Use SRT Preview PRO to monitor a supported MPEG-TS feed and save the received transport stream locally while it is active.

Outcome
Keep a local TS copy of a received feed while checking its picture, audio, and transport statistics.
Uses
SRT Preview PRO

Signal path

  1. SRT sender
  2. SRT Preview PRO
  3. Local TS file
View workflow
